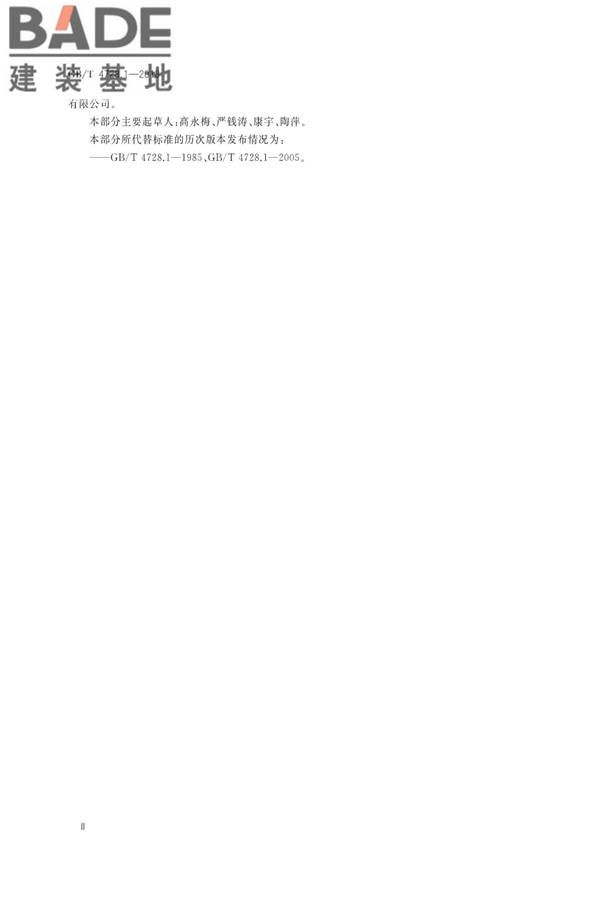

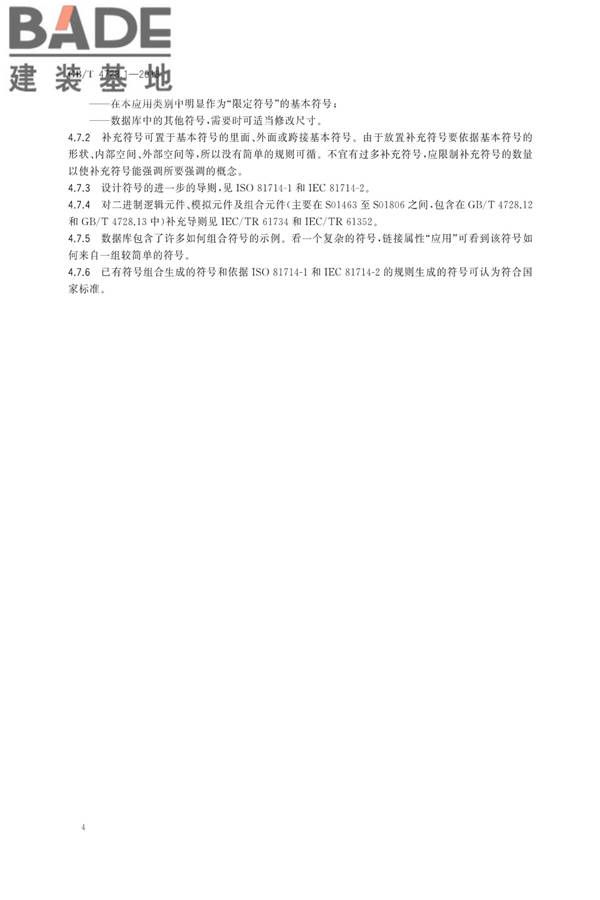

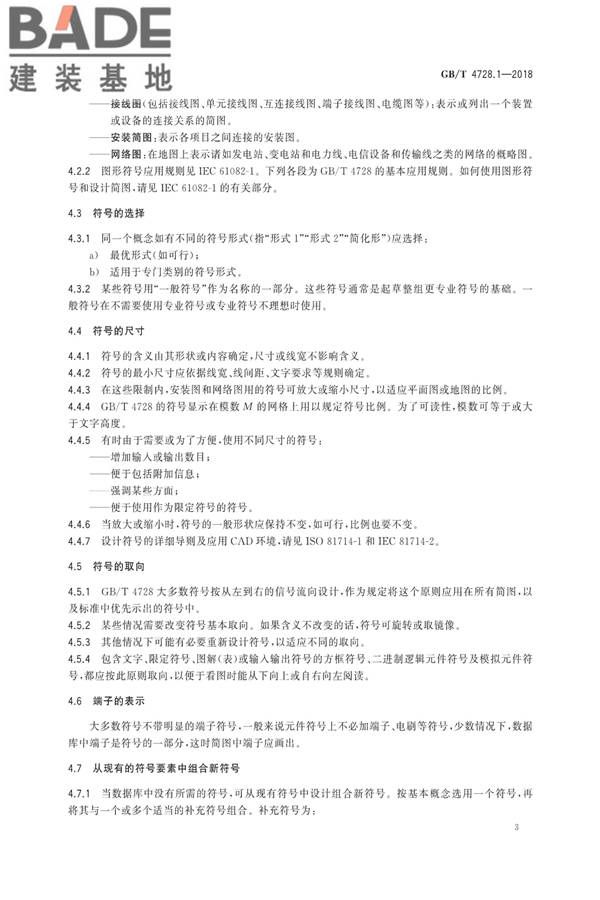

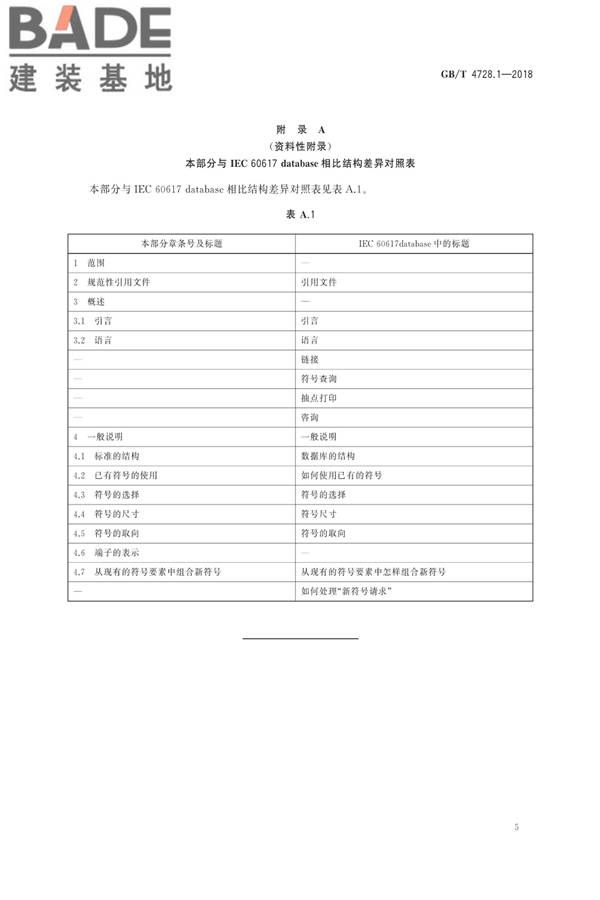

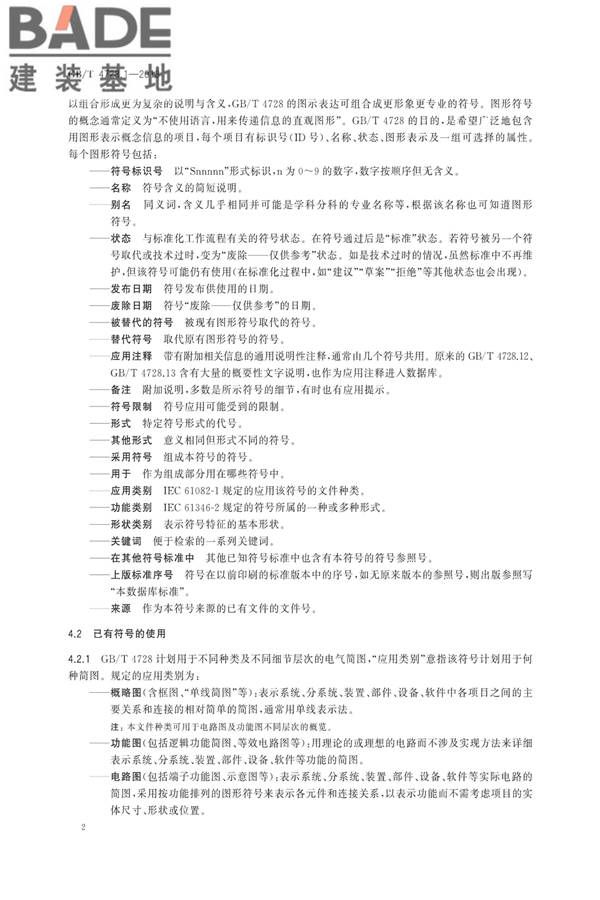

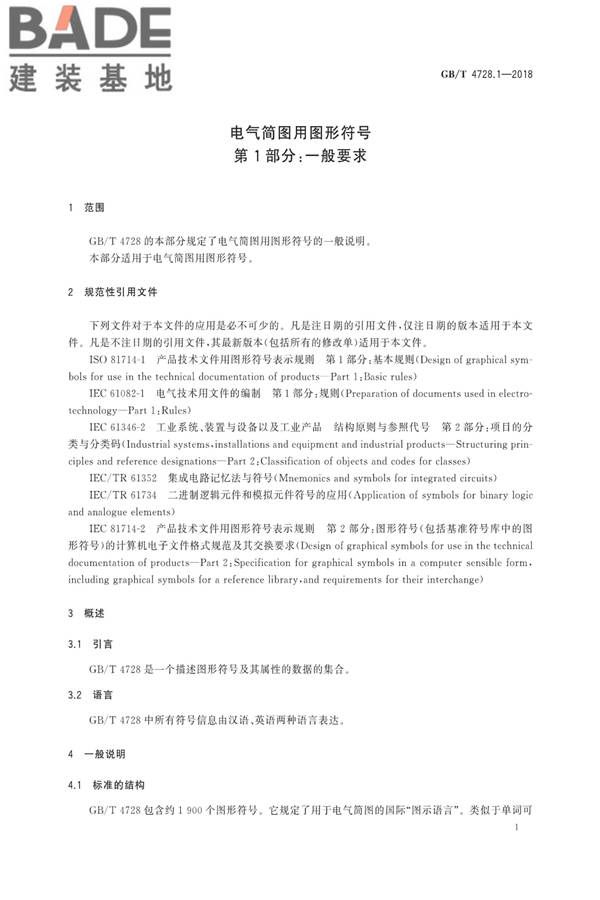

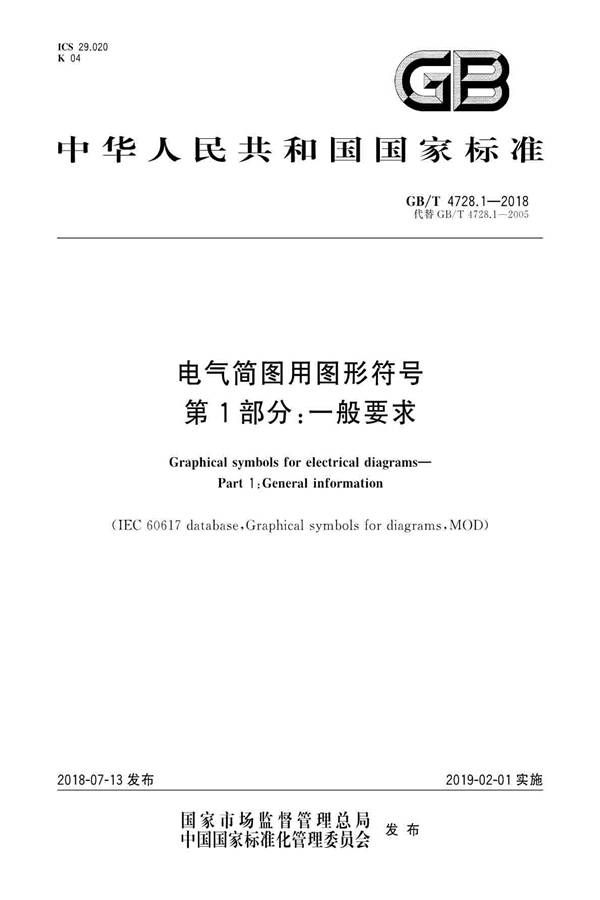

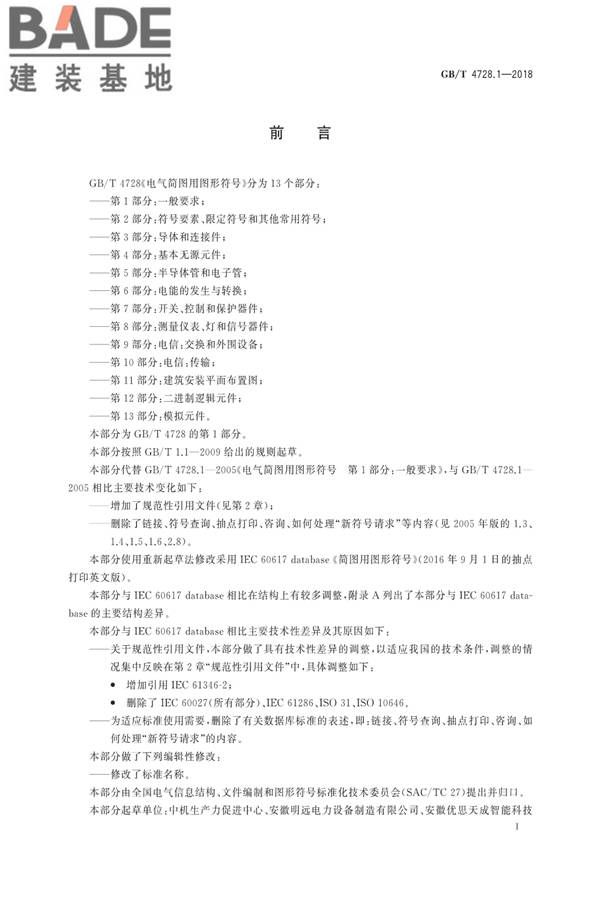

电气简图用图形符号第1部分：一般要求GBT4728.1-2018
下载资料
来源：
建装基地
时间：2022-03-29 下载所需积分：10
上一篇:
3~110kV高压配电装置设计规范GB50060-2008
下一篇:
电气简图用图形符号第2部分：符号要素、限定符号和其他常用符号GBT 4728.2-2018 IEC60617
